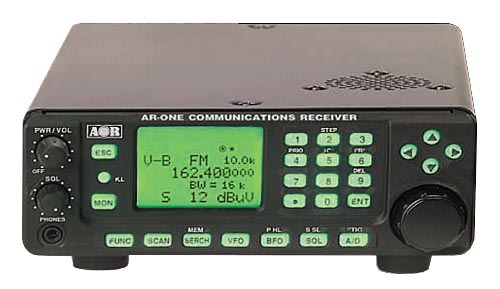

AR-ONE Communications Receiver

Super wide coverage: 10 KHz ~ 3.3 GHz Cellular unblocked
1000 memory channels
10 VFOs
Monitor AM, NFM, WFM, USB, LSB, CW, Data
Ultra-stable reference frequency oscillator
Two RS-232C ports plus control head port
Control up to 99 AR-ONE Units with one PC
support computer controlled
Triple conversion superheterodyne front end
Antenna input level readout
Adjustable BFO
High intercept
Multi IF signal output (10.7 MHz or 455 KHz)
Excellent sensitivity

Specification

Model:

AR-ONE

Configuration:

Triple conversion super heterodyne

Frequency coverage:

10KHz ~ 3.3 GHz (no gap)

Receive Modes:

AM, NFM, WFM, USB, LSB, CW, DATA

Sensitivity:

(AM mode -10dB S/N, NFM mode -12dB SINAD, CW/SSB mode -10dB S/N)

10 ~ 40 KHz:: CW 22.3 uV
40 ~ 100 KHz:: AM -4.5uV, CW -1.5uV
100 KHz ~ 40 MHz:: AM 2.5uV, 2 ~ 40 MHz: AM -1.5uV, SSB/CW -0.7uV, NFM -0.89uV
40 MHz ~ 1 GHz:: AM -0.89uV, SSB/CW -0.4uV, NFM -0.5uV, WFM -1.5uV
1 GHz ~ 2.5 GHz:: AM -0.7uV, SSB/CW -0.32uV, NFM -0.4uV, WFM -1.5uV
2.5 GHz ~ 3.3 GHz:: AM -0.9uV, SSB/CW -0.35uV, NFM -0.5uV, WFM -1.5uV

IF frequencies:

1st IF : 754 MHz /265 MHz
2nd IF : 10.7 MHz
3rd IF : 455 KHz

Frequency steps:

Standard steps: 1, 10, 50, 100, 500 Hz, 1, 5, 6.25, 9, 10, 12.5, 20, 25, 30, 50, 100, 500 KHz

Non standard steps:

Less than 1 MHz (1 Hz incremental)

Selectivity:

B/W	-6dB	-60dB
0.5KHz	0.5KHz >	< 2KHz
3KHz	3KHz >	< 6KHz
9KHz	9KHz >	< 30KHz
15KHz	15KHz >	< 40KHz
30KHz	30KHz >	< 70KHz
110KHz	110KHz >	< 450KHz
220KHz	220KHz >	< 600KHz
300KHz	300KHz >	< 900KHz

Spurious Sensitivity:

60dB >

Adjacent Selectivity:

55dB >

Dynamic Range:

90dB >

Unwanted Spurious
emission:

< -57dBm

3rd IP:

+2dBm > (-1dBm > above 2.5GHz)

Frequency stability:

+/- 0.1ppm (-10 ~ 50C)

THD:

20dB > (< 10%)

Audio output:

1.5w (at 8ohms, THD < 10%)

Power requirement:

13.5V DC, < 2amp. (@ 1w audio output)

Antenna impedance:

50 OHM BNC

Antenna connector:

N type

IF output level:

-20dBm (10.7MHz or 455KHz)

External frequency
standard input:

10MHz (0dBm +/-3dB)

Control interface:

RS-232C

Operating temperture:

-10 ~ 50deg.(C), -18 ~ 144deg.(F)

Dimensions:

157(W) x 58(H) x 270(D) mm
6.2(W) x 2.3(H) x 10.8(D) inch

Weight:

Approx. 2.2Kg (4.9lbs)
