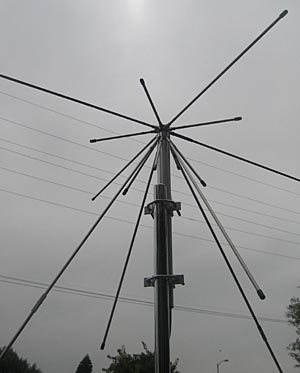

The DA3000 is a 16 element 'receive' wide band discone antenna providing a useable frequency coverage from 25MHz to 2GHz. Many of the 16 elements are of different lengths ensuring true wide band characteristics including one 'loaded' element to enhance the low frequency performance. This antenna is designed and manufactured in Japan to exacting standards. |
 DA5000 $470.00 CAD |

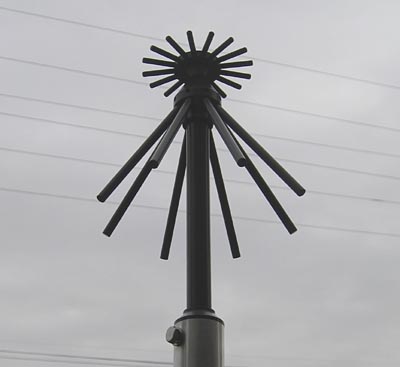

The DA5000 is a very high performance, commercial grade UHF discone receive antenna. The frequency coverage is 700 to 3000 MHz and the DA5000 employes a N connector. The maximum antenna gain is 2.5 dB. |
 SA7000 $345.00 CAD |

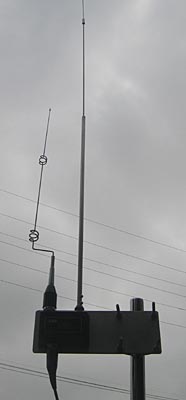

The SA7000 is a super wideband coverage receive antenna with a useable frequency coverage of 30 kHz to 2 GHz. The SA7000 is a passive arrangement providing two whip elements: a long element for short wave up to 30 MHz and a second shorter loaded whip antenna for frequencies up to 2 GHz, the loading coils are tuned around 150 & 800 MHz to enhance performance of the VHF & UHF bands. The SA7000 is designed for areas where space is a problem or when an "unobtrusive" installation is essential.The SA7000 is a passive arrangement providing two whip elements: a long element for short wave up to 30 MHz and a second shorter loaded whip antenna for frequencies up to 2 GHz, the loading coils are tuned around 150 & 800 MHz to enhance performance of the VHF & UHF bands. |
 DS3000A $229.00 CAD |
The DS3000A antenna is designed to receive across the frequency range of 75MHz to 3000MHz (3GHz) employing a compact discone configuration. The small size and relatively light weight design is ideal for installation in a confined space such as an apartment balcony. The DS3000A can also be used for transmit on 144, 430, 904 and 1200 MHz ham bands (under 50 watts). This stainless steel antenna is only 2.9 feet high and attaches to any standard mast from 0.8 - 1.5 inches with the supplied U-bolt. Weight is only 1.55 lbs. |
 LA390 $560.00 CAD |

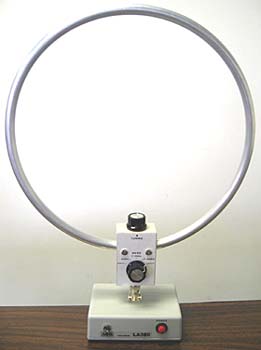

The LA380 is a compact active (1 foot diameter) loop antenna specifically designed to provide good reception when away from the main monitoring location or when large external antennas are not practical. Compact, but achieving high performance, it features an internal high-gain amplifier (20dB for 10kHz-250MHz) and excellent overall strong signal handling (high IP3 +10dBm) |
|
| |
